Ram 1500 Lowering Links Installation Guide
Overview
Installing adjustable lowering links on your Ram 1500 is a straightforward process that allows you to reduce ride height while maintaining full functionality of the factory air suspension system. Because lowering links replace the factory ride height sensor links rather than modifying core suspension components, installation is simple and fully reversible.
Most installations can be completed in under one hour using basic hand tools. No cutting, no permanent modification, and no electronic recalibration are required.
This guide outlines the basic steps involved so you can confidently install and adjust your Ram lowering links for the desired stance.
Tools Required
Only basic tools are needed to complete the installation.
• Flathead screwdriver or trim tool (if needed for access)
• Lubricant (Ease of Removal / Installation)
• Work gloves (optional)
Installation can be performed on the ground.
For more benefits like ease of installation, visit our benefits page.
Before You Begin
Before starting the installation, it is important to prepare the vehicle and work area properly.
• Park the vehicle on a flat, stable surface
• Engage the parking brake
• Ensure the suspension is in a normal ride height setting
• Turn off the ignition before working near suspension components
If your Ram 1500 is equipped with selectable ride height modes, it is recommended to perform the installation at normal ride height for easier access and consistent adjustment.
Before installation, confirm compatibility using our fitment guide or to ensure fitment, contact us.
Step-by-Step Installation

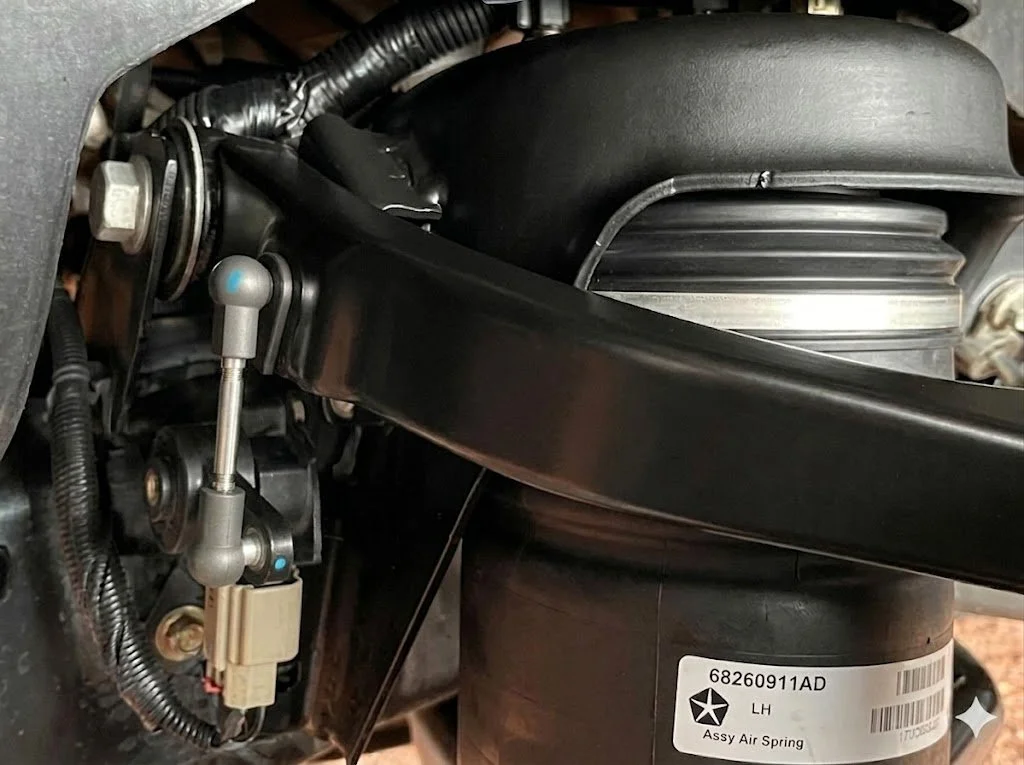

Locate the Ride Height Sensors
The factory ride height sensors are mounted to the suspension and connected by small linkage arms. These links communicate suspension position to the vehicle’s air system.
You will find these sensors near the control arms or suspension components at each corner of the vehicle.

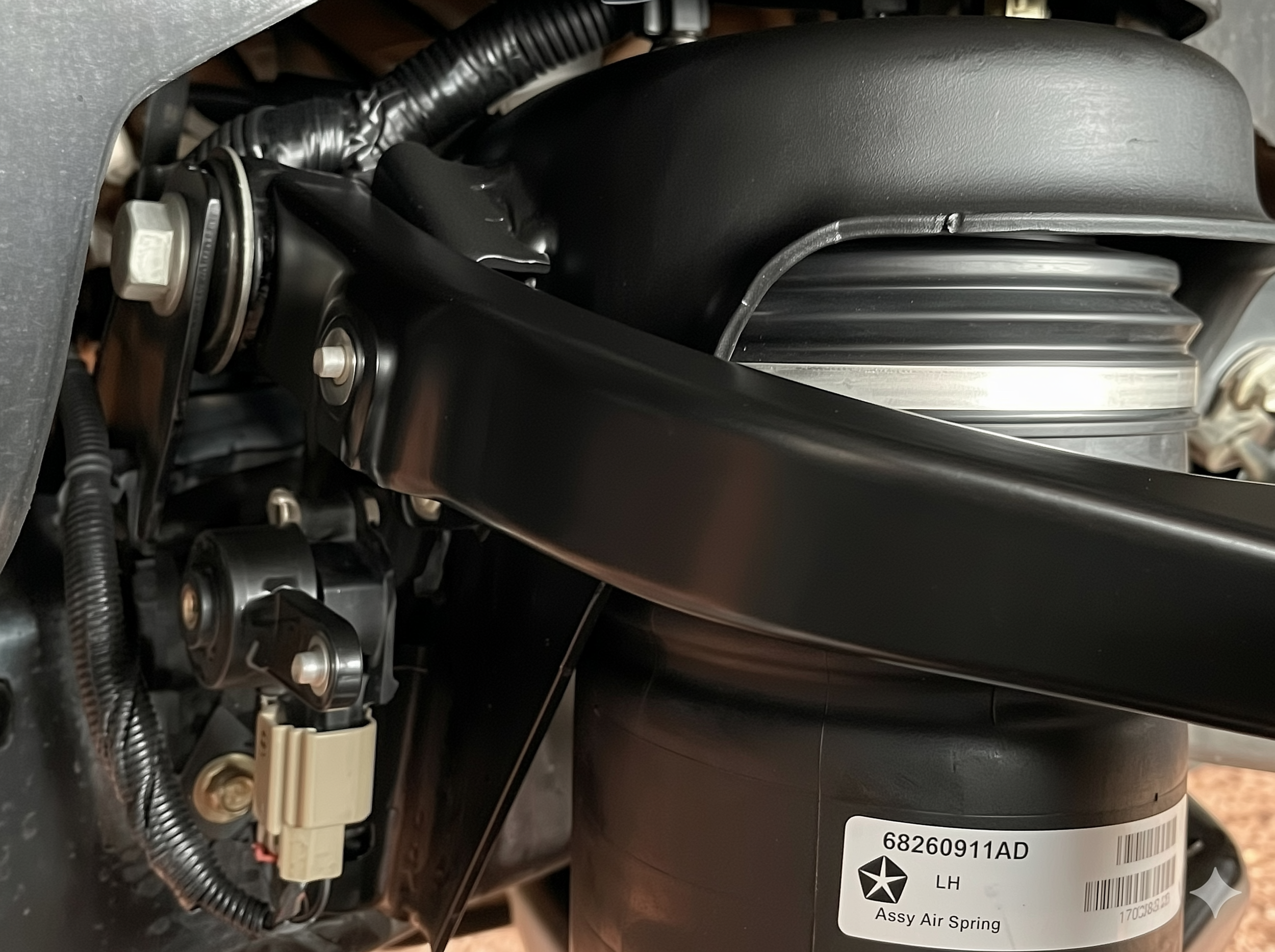

Remove the Factory Links
Carefully remove the factory ride height sensor links by detaching them from their mounting points.
These links are typically secured by small clips or press-fit connections. Gently remove them without applying excessive force to the sensor arms.
Take note of the original orientation before removal.
Install the Adjustable Lowering Links

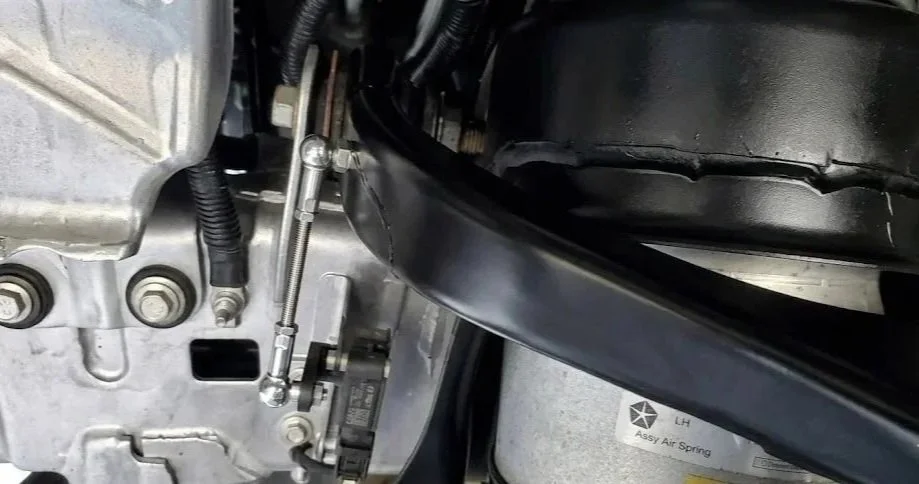

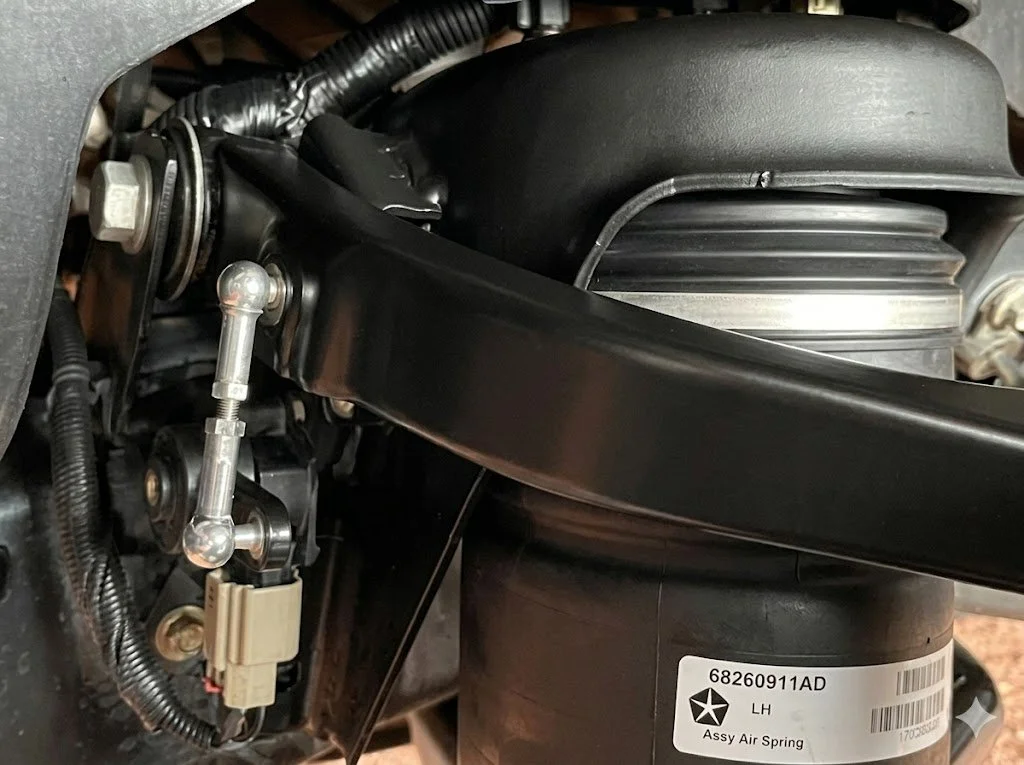

Attach the adjustable lowering links in place of the factory links, ensuring they are securely connected at both mounting points.
Make sure the links are seated properly and aligned with the sensor arms to avoid binding or improper readings.
Set the Initial Length
Before lowering the vehicle, adjust the length of the new links to your desired starting point.
A moderate adjustment is recommended for initial setup, allowing you to test and fine-tune the ride height after installation.
Ensure both sides are adjusted evenly for balanced suspension behavior.
Lower the Vehicle and Test
Once installed, lower the vehicle back onto the ground and start the vehicle.
Allow the air suspension system to recalibrate and settle into its new position. The truck will automatically adjust based on the new sensor input from the lowering links.

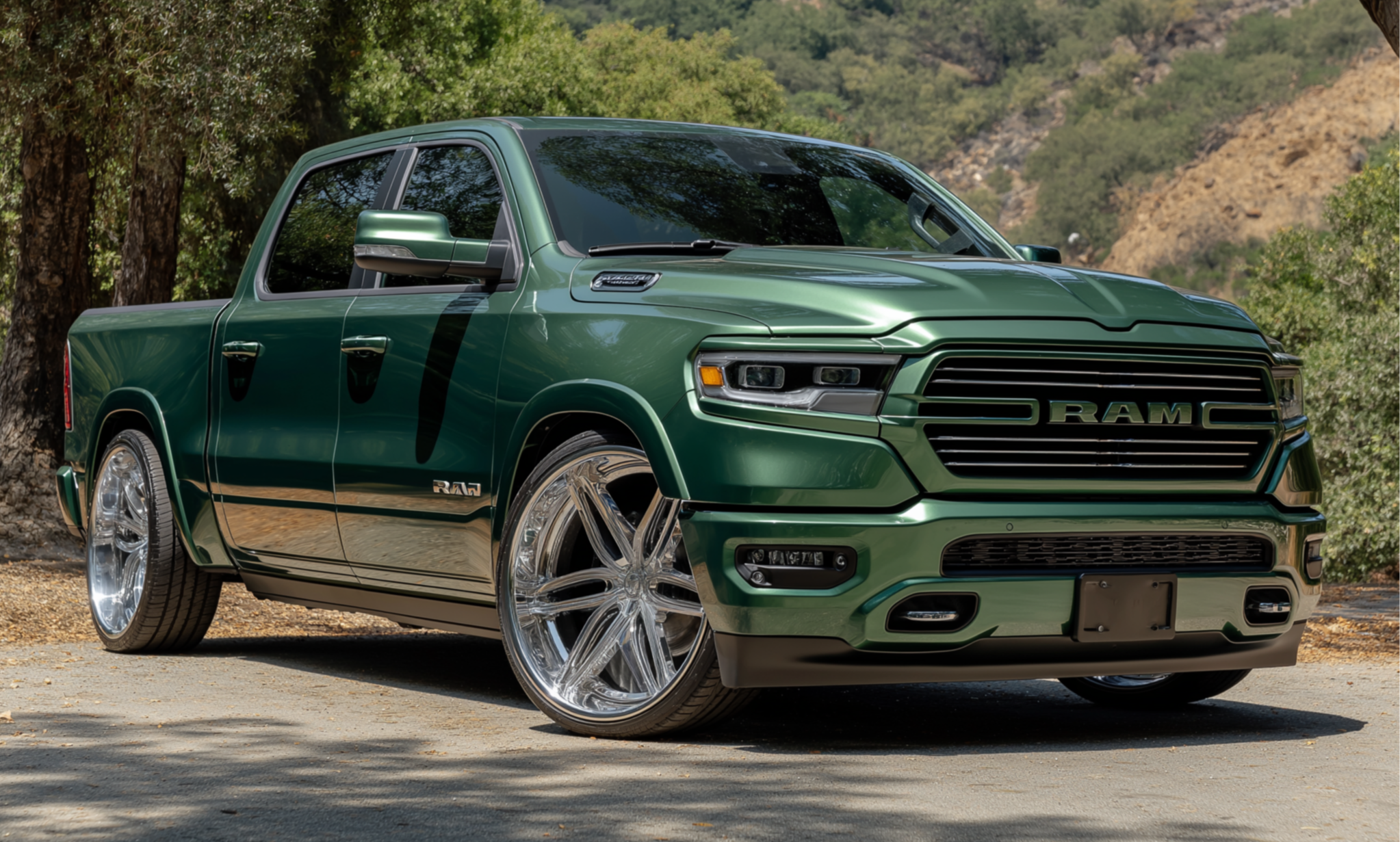

Check the stance and ensure the vehicle sits evenly.
Adjusting Ride Height

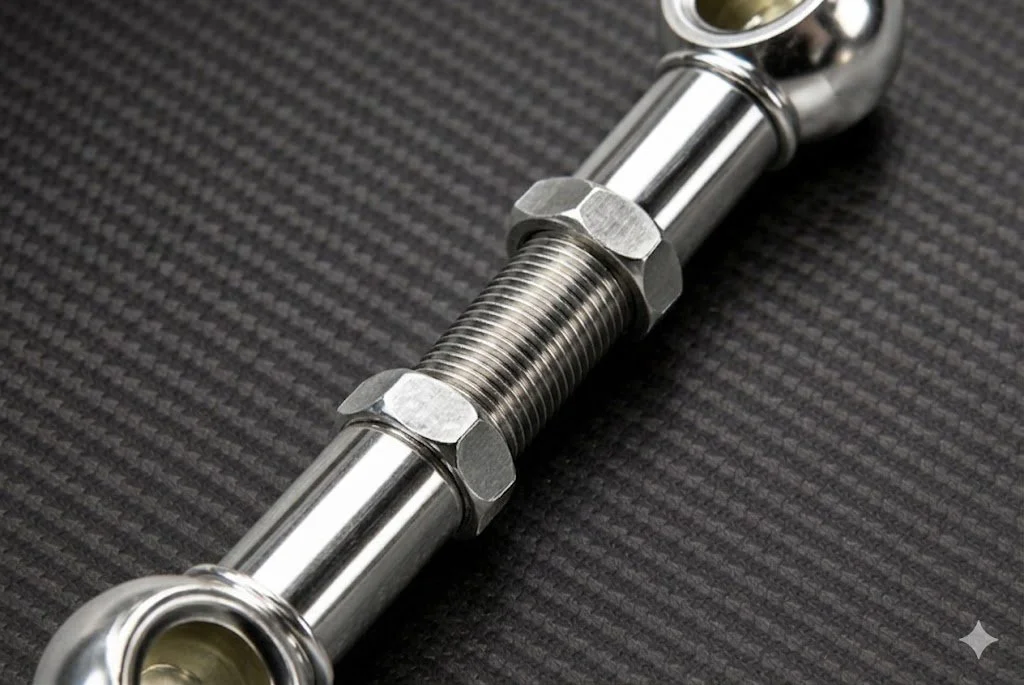

Fine-tuning your ride height is simple and can be done by adjusting the length of the links.
Shortening the link typically results in a lower stance, while lengthening it raises the vehicle slightly.
Make small adjustments and allow the suspension system to recalibrate between changes. This helps achieve a balanced and consistent result across all four corners.
Take your time dialing in the exact stance that matches your preference.
Post-Installation Check
After installation and adjustment, perform a quick inspection to ensure everything is functioning correctly.
• Verify all links are securely attached
• Check for any interference or binding
• Ensure even ride height across the vehicle
• Take a short test drive to confirm normal operation
If any irregularities are noticed, recheck link alignment and adjustment.
Common Mistakes to Avoid
Avoiding these common mistakes will help ensure a smooth installation and optimal performance.
• Over-adjusting the links too aggressively on first setup
• Uneven adjustment between left and right sides
• Installing links at incorrect angles
• Forgetting to recheck after initial drive
Taking a measured approach will lead to better results and a cleaner final stance.
Frequently Asked Questions
-
Most installations can be completed in 30–60 minutes.
-
No. A lift is helpful but not required. The installation can be done on the ground with basic tools.
-
Ride quality remains largely unchanged because the factory air suspension system is still fully functional.
-
Yes. The links are fully adjustable and can be fine-tuned at any time.
-
When properly installed, lowering links work within the factory system and do not trigger errors.
